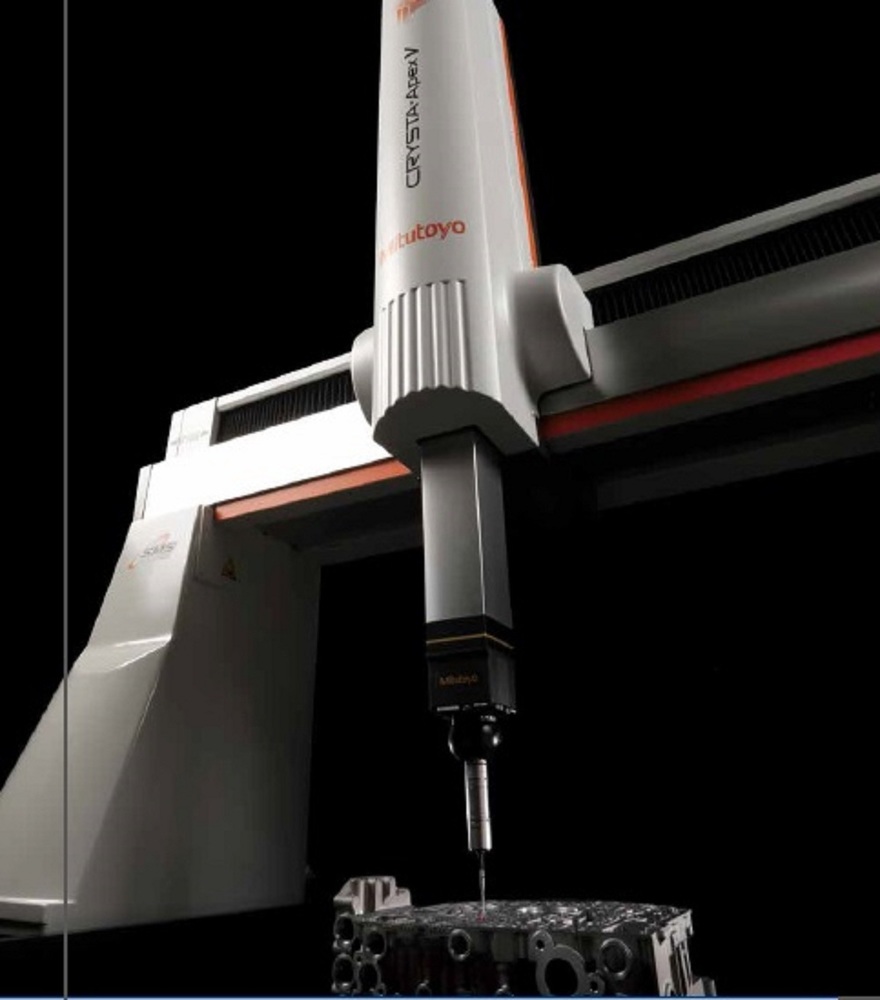

CMM CMM

Name: CMM CMM
Brand: Mitutoyo South Asia Pvt. Ltd.
Price: 3500000.0 INR
Availability: InStock

Price 3500000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

CMM CMM Specification

Measurement Range
X: 500 mm, Y: 400 mm, Z: 400 mm

Wind Speed
520 miles/hr (MPH)

Equipment Type
CNC Coordinate Measuring Machine (CMM)

Humidity %
40% - 70%

Connectivity Type
USB, Ethernet

Capacity
Up to 1000 kg workpiece Kg

Temperature Range
18 C - 22 C (Recommended) Planck temperature ()

Sensor Type
Contact/Touch Probe

Resolution
0.1 micron

Frequency
50/60 Hz Hertz (HZ)

Material
Granite and Aluminum Alloy

Size
700x1000x600mm

Power Supply
220-240 V AC, 50/60 Hz

Height
1000 Millimeter (mm)

Product Type
CNC

Power Consumption
Approx. 1000W Volt-Ampere (VA)

Weight
2000 Kilograms (kg)

Accuracy
5 mg

Display Type
Other

Width
600 Millimeter (mm)

Length
700 Millimeter (mm)

Range
500 x 400 x 400 mm

Weight
Approx. 1200 kg

Axis drive
Servo Motor Driven

Operating System Compatibility
Windows 7/8/10/11

Repeatability
1.5 m

Environmental Conditions
Temperature controlled room required

Safety Features
Collision Detection, Emergency Stop

Data Output Format
CSV, TXT, PDF

Software
3D Measurement/Inspection Software Included

Guideway System
Precision Linear Guide

Probe Interface
Renishaw Compatible

CMM CMM Trade Information

Minimum Order Quantity
1 Number

Supply Ability
100 Per Month

Delivery Time
7 Days

About CMM CMM

Features:

New linear glass scales with high environmental resistance.

No need for home position movement after power ON hence

improvement in measurement efficiency.

Real-time temperature compensation system for guaranteed

accuracy within temperature range of 16C to 26C (Standard

function)

Single piece granite with integrated Y-axis guideway for

unmatched performance even at high speed.

Status Monitor (Smart Measuring System, or SMS) feature,

which indicates the operational status of the measuring machine.

(Standard function).

Engineered for Precision and Durability

Manufactured using a robust combination of granite and aluminum alloy, this CNC CMM provides stability and minimized thermal expansion for consistent measurement results. Advanced guideway systems ensure smooth movement and sustained accuracy along X, Y, and Z axes, making it suitable for high-precision manufacturing environments.

Integrated 3D Measurement Software

The included 3D measurement and inspection software makes complex dimensional checks intuitive and efficient. Users can visualize, analyze, and document measurement data with ease, benefiting from versatile data outputs (CSV, TXT, PDF) for in-depth reporting or process integration.

Comprehensive Safety and Reliability

Equipped with real-time collision detection and an emergency stop, this CMM safeguards both operators and equipment integrity. Automatic sensor-driven processes and a full digital LCD interface streamline operation, while strict environmental requirements ensure that the device maintains its high-accuracy promises.

FAQs of CMM CMM:

Q: How does the CMM ensure measurement accuracy and repeatability?

A: The CMM uses high-precision linear guideways, stable granite and aluminum alloy construction, and Renishaw-compatible contact probes to achieve repeatability of 1.5 m and accuracy of 2 m. Operating within a temperature-controlled room (18C - 22C) further maintains measurement consistency.

Q: What types of data output formats are supported by this CMM?

A: Measurement data can be exported in CSV, TXT, and PDF formats, ensuring easy integration with quality control and documentation systems.

Q: When should this CMM be used for dimensional inspections?

A: This machine is best employed for mid to large-sized workpieces (up to 500 kg) requiring detailed 3D inspection or quality verification, particularly in environments demanding tight accuracy tolerances such as manufacturing, aerospace, or automotive industries.

Q: Where should the CMM be installed for optimal performance?

A: It should be placed in a temperature-controlled room with regulated humidity (40%-70%) and minimal air movement (1 m/s). These conditions limit environmental impacts, preserving the CMMs high accuracy and measurement repeatability.

Q: What is the process for operating the CMM?

A: Users set up measurements using the intuitive 3D inspection software on a compatible Windows system, then secure the workpiece (up to 500 kg) on the equipment, use touch probes to collect dimensional data, and generate reports via digital LCD and data export features.

Q: How does the built-in safety system function?

A: The system is built with real-time collision detection and an emergency stop feature, quickly halting operation if an obstruction or unsafe condition is identifiedprotecting both user and machine.

Q: What are the benefits of using this CMM in a manufacturing environment?

A: Utilizing this CMM streamlines inspection processes, enhances accuracy and efficiency, reduces human error, and provides comprehensive digital reports, ultimately improving product quality and traceability in critical manufacturing workflows.
